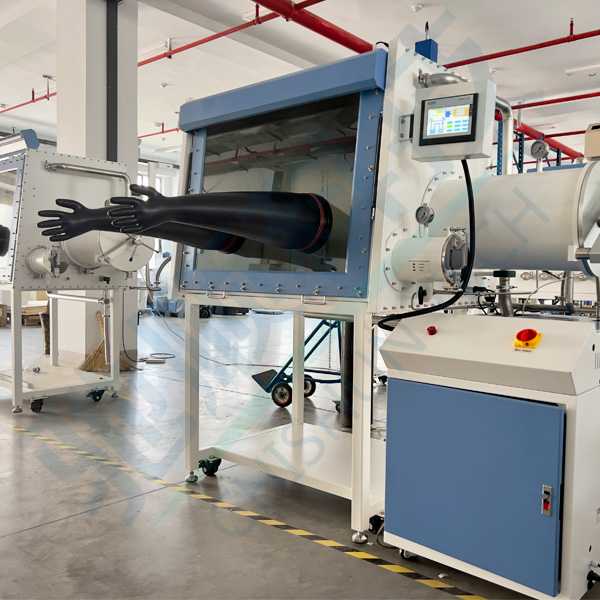

Name： CSDX1001Purification Glove Box

Model： CSDX1001

Introduction： In experiments of chemical reactions and sample treatments, some substances are so sensitive to water and oxygen that they can’t be processed in atmospheric environment.

水氧0.1ppm鋰離子電池惰性氣體

Parameter
Video
Test case
Clients

In experiments of chemical reactions and sample treatments, some substances are so sensitive to water and oxygen that they can’t be processed in atmospheric environment. Therefore, circular purification box are invented to enable the sensitive substances to react in inert gas environment without water and oxygen. The box is widely used in lithium ion batteries and materials, semiconductors, film preparation, nano materials, catalysts, super capacitors, special lamps, laser welding, brazing, titanium alloy welding, etc.

Different names

、Cleaning cycle regeneration purification system

、Vacuum glove box

3、Super purification glove box

4、Automatic cleaning glove box

Competitive Advantage

、Factory direct delivery

、Quality assurance

、Best price

、Compact in size

5、Complete specifications

、Service Assurance

Specifications

Dimension	L1220 x W780 x H900mm
Material	SUS 304, thickness 3mm
Glove opening	φ220mm ，Hard aluminum alloy material, after anti-corrosion treatment
Gloves	PIERCAN made in USA; Gloves with a diameter of 8 inches and a thickness of 0.4mm are made of butyl rubber material
Window	1、The inclined design of the operating surface is made of 10mm safety tempered glass, and the front window is pasted with a special customized ultra strong sealing ring, adopting a front door opening structure 2 、Can maintain a certain positive and negative pressure (-12mbar to 12mbar) during use 3 、The box is equipped with energy-saving lighting and anti reflective materials, which provide soft light and prevent visual fatigue 4、One porous power supply terminal board is pre installed inside the box (power supply: 220V ± 10% 50Hz ± 10%) 5 、Set up 5 standard KF-40 interfaces on the back panel of the box for easy access to liquids, gases, signals, etc 6 、There are two layers of storage boards inside the box, which have the function of adjusting the height up and down
Support	Including casters, with a height of 914mm. Castors have functions such as leveling, moving, and fixing
Leakage rate	Hourly leakage rate of sealed box with controlled inert atmosphere ≤ 5XMaximum leakage standard ≤ 0.05vol%/h
Appearance	Cylindrical (304 stainless steel), connected to the glove box, using manual and automatic air supply control
Dimension	φ360mm*600mmRight side operation, using gas spring door opening method, with sliding tray inside the transition compartment
Tray	230 mm*595mm Can freely move left and right, with an extension depth of 361mm
Vacuum degree	≤-0.1MPa Vacuum pressure gaugeWika made in GERMAN
Appearance	Cylindrical (304 stainless steel), connected to glove box, controlled by manual valve
Dimension	φ155mm*320mm，Single opening handle pressing
Vacuum degree	≤-0.1MPa

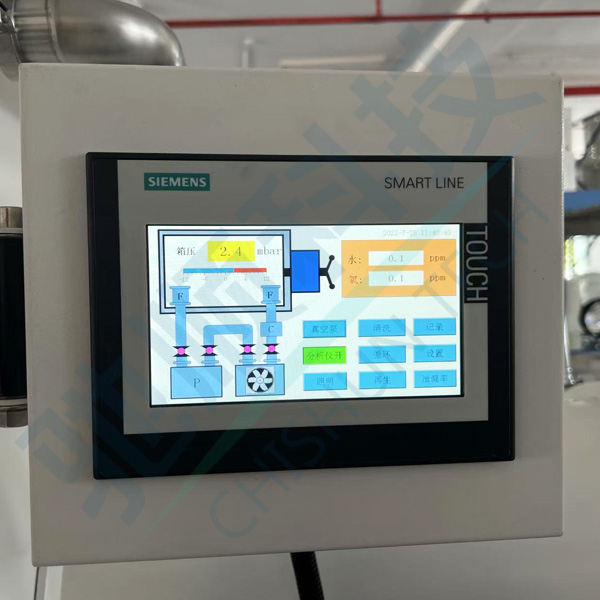

Controling system	Including self diagnosis, power-off and self start characteristics, with pressure control and adaptive functions.Automatic control, cycle control, password protection, and vacuum chamber control are displayed on LCD.The control unit adopts a German SIEMENS touch screen, and the operation menu can be selected in Chinese/English
Pressure control	Control the pressure of the box and transition chamber at a certain set value
Foot pedal	Can control the pressure of the glove box and facilitate operation
Purification ability	O2 、H2O < 1ppm
Adjustment device	Touch adjustment through PLC (heating, evacuation, purification, regeneration)No need for human monitoring throughout the entire process
Working gas	N2 or Ar(Gas circulation)
Circulating fan	German Elektror imported high-speed variable frequency fan, flow rate 0-80m3/hMicroprocessor controlPressure tested stainless steel device
Single purification column	5KG German BASF deoxygenation material, capable of deoxygenation of 60L5KG American UOP high-efficiency absorbent material, capable of removing 2kg of water
Purification valve	Fully automatic electrically operated valve with modular design
Filter	High efficiency filter using a 0.3 micron aperture filter screen that complies with HEPA standards
Regeneration system	Used for the reuse of purification systems to activate them;Regeneration requires a mixture of N2/H2 or Ar/H2 gases, with H2 accounting for 5-10%
Display System	The control unit adopts a German SIEMENS touch screen, and the operation menu is in Chinese/English
Vacuum system	Automatic pneumatic electroplating boardThe vacuum pump adopts DRV10 vacuum pump from the Chinese.Vacuum can be applied separately to the box and transition chamber, and individual control can be achieved at any time (customized project).
