Products

Planetary Ball Mill

< >

Name： BM04 Planetary Ball Mill

Model： BM04

Introduction： BM04 tabletop planetary ball mill is equipped with four ball grinding tanks on the same turntable. When the turntable rotates, the ball grinding tank rotates around the turntable shaft for planetary motion.

4*100ml900rpm

Parameter
Video
Test case
Clients

BM04 desktop planetary ball mill is a necessary device for mixing, fine grinding, sample preparation, nano-material dispersion, new product development and small batch production of high-tech materials. The product has the advantages of small size, full function, high efficiency and low noise. it is an ideal equipment for scientific research institutions, colleges and universities and enterprise laboratories to obtain microparticle research samples (four samples can be obtained at the same time in each experiment). The sample can be ground in vacuum. The products are widely used in geology, mineral resources, metallurgy, electronics, building materials, ceramics, chemical, light industry, medicine, beauty, environmental protection and other departments.

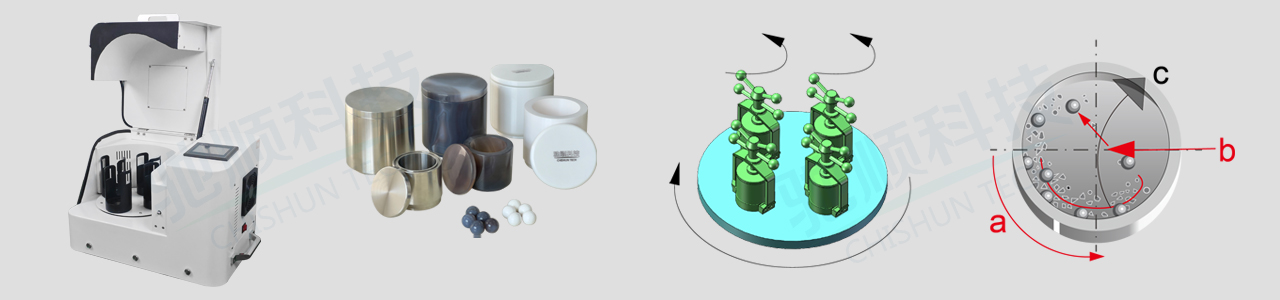

BM04 tabletop planetary ball mill is equipped with four ball grinding tanks on the same turntable. When the turntable rotates, the ball grinding tank rotates around the turntable shaft for planetary motion. The grinding ball in the ball mill tank grinds and mixes the sample in high-speed motion. The product can be ground by dry and wet methods and mixed with products with different particle sizes and materials, and the minimum particle size of the grinding product can be up to 0.1micron (i.e. 1.0X10mm4).

Specifications

Applications	Electronic materials, soil, aerospace materials, batteries, ceramics, minerals, metallurgy, etc.
Applicable samples	Soft, hard, brittle, fibrous, dry or wet
Max. feed volume	2/3 of the of the grinding jar
Vacuum grinding	optional
Feed size	soil≤10mm other≤3mm
Final fineness	0.1μm
Alternate timing	1-9999min
Rotation	900rpm
Grinding jar	50ml、100ml
Vacuum jar	50ml
Certificate	UL、CE
Power	220V 0.75kw 50~60Hz
Packaging Details	573838cm 80KG
Data storage	Yes
Data monitoring	Real time monitoring of operational status, supporting fault alarms
Programmable operation	5 sets operation steps supporting edit/delete
Control mode	HMItouch screen, Multiple operation modes (forward and reverse alternating operation, interval operation, timed operation)
Jar materials	Stainless steel, vacuum, agate, zirconia, alumina, PTFE, nylon, tungsten carbide ，etc.
Competitive Advantage	1、Factory direct delivery 2 、Quality assurance 3、Best price 4 、Compact in size 5 、Complete specifications 6、Service Assurance
