Products

Planetary Ball Mill

< >

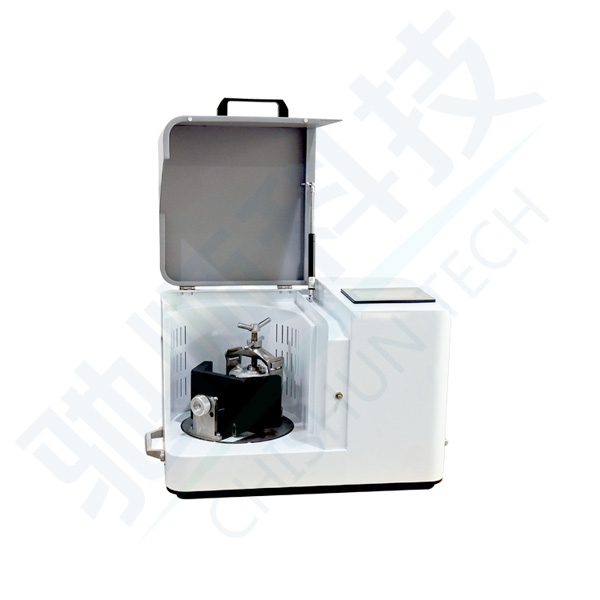

Name： PULVERIZER 500 Planetary Ball Mill

Model： PULVERIZER 500

Introduction： The PULVERIZER 500 single tank high energy planetary ball mill is equipped with a grinding platform and a counterweight on the same turntable. When the turntable rotates, the ball milling tank rotates around the axis of the turntable and rotates around its own axis

29g1100rpm500ml

Parameter
Video
Test case
Clients

The PULVERIZER 500 single tank high energy planetary ball mill is equipped with a grinding platform and a counterweight on the same turntable. When the turntable rotates, the ball milling tank rotates around the axis of the turntable and rotates around its own axis, making planetary motion. Abrasives and test materials are used to roll at a high speed in the grinding tank to produce strong shear, impact and rolling of materials to achieve the purpose of crushing, grinding, dispersing and emulsifying materials.

How it works

The crushing and grinding of materials are mainly realized by high-speed friction and collision between grinding balls. When the plate rotates, the grinding tank with sample material and grinding ball rotates at a high speed around its central axis in the opposite direction. At a certain speed, the centrifugal force separates the sample and the grinding ball from the inner wall of the grinding tank. The grinding ball shuttles back and forth at high speed in the tank, and the sample is further ground by hitting the tank wall. In addition, the impact collision between grinding balls also accelerates the consumption of sample size. The main disk of the solar wheel of the PULVERIZER 500 single-tank high-energy planetary ball mill has a rotating speed of up to 650rpm and a centrifugal force of 29g.

Specifications

Max. feed size	5mm
Jar volume	500ml1, 250ml1, 80ml*2(superimposed)
Final fineness	<0.1um
Grinding mode	Dry grinding、Wet griding
Typical griding time	5min
Main disc speed	100-650rpm
Transmission ratio	1：-1.82
Main disc diameter	122mm
Safety device	There’re more than 4 pieces of thicker metal devices to ensure safety
Jar safety device	Double locks, rotary locking device and press locking device
Centrifugal acceleration	(g=9.81m/s2):29g
Cooling griding	Supported upon optional cooling device
Certificate	UL 、CE
Power	AC220V 50-60Hz 0.75kw
Packaging Details	664244cm
Control mode	7" HMI touch screen, Multiple operation modes (forward and reverse alternating operation, interval operation, timed operation)
Exhaust device	Double fan forced ventilation design, effectively reducing the temperature of the grinding chamber during ball milling process
Jar materials	Stainless steel, vacuum, agate, zirconia, alumina, PTFE, nylon, tungsten carbide ，etc.
Competitive Advantage	1 、Factory direct delivery 2 、Quality assurance 3、Best price 4、Compact in size 5、Complete specifications 6 、Service Assurance
